Coordinated multi-point warning
Three radar warning lights, one audible beacon, and a dedicated controller work together as one forklift protection system instead of isolated single lamps.
GET A QUOTE
OULA LIGHTINGSearch the site
Forklift Safety Lights
Forklift radar safety alert system for active industrial warning.
A coordinated forklift safety package with multiple radar warning lights, an audible beacon, and a controller box designed to strengthen side and rear obstacle awareness in shared warehouse traffic.
Forklift Safety Lights
Forklift radar safety alert system for active industrial warning.
A coordinated forklift safety package with multiple radar warning lights, an audible beacon, and a controller box designed to strengthen side and rear obstacle awareness in shared warehouse traffic.
System type
Radar + light + beacon alert set
Coverage
Left, right, and rear warning positions
Installation
Bracket, magnet, harness, and controller included
Alert logic
Steady monitor, flashing trigger, automatic reset
System fit
Built as a complete forklift warning package instead of a single accessory light.
This page is positioned around the full system: coordinated radar light positions, a separate beacon, a controller, and adjustable sensing logic that can be configured for real forklift routes and shared worker zones.
Visual + audible alert logic
The system is built to keep steady monitoring during normal operation, then trigger flashing lights and an audible beacon when an obstacle enters the detection zone.
Adjustable sensing coverage
The supplied source material supports configurable left-side, right-side, and rear detection ranges through DIP-switch tuning on the controller box.
Forklift-focused installation
The hardware set, brackets, harnesses, and magnetic accessories are all oriented toward practical forklift safety deployments in warehouses and industrial traffic lanes.

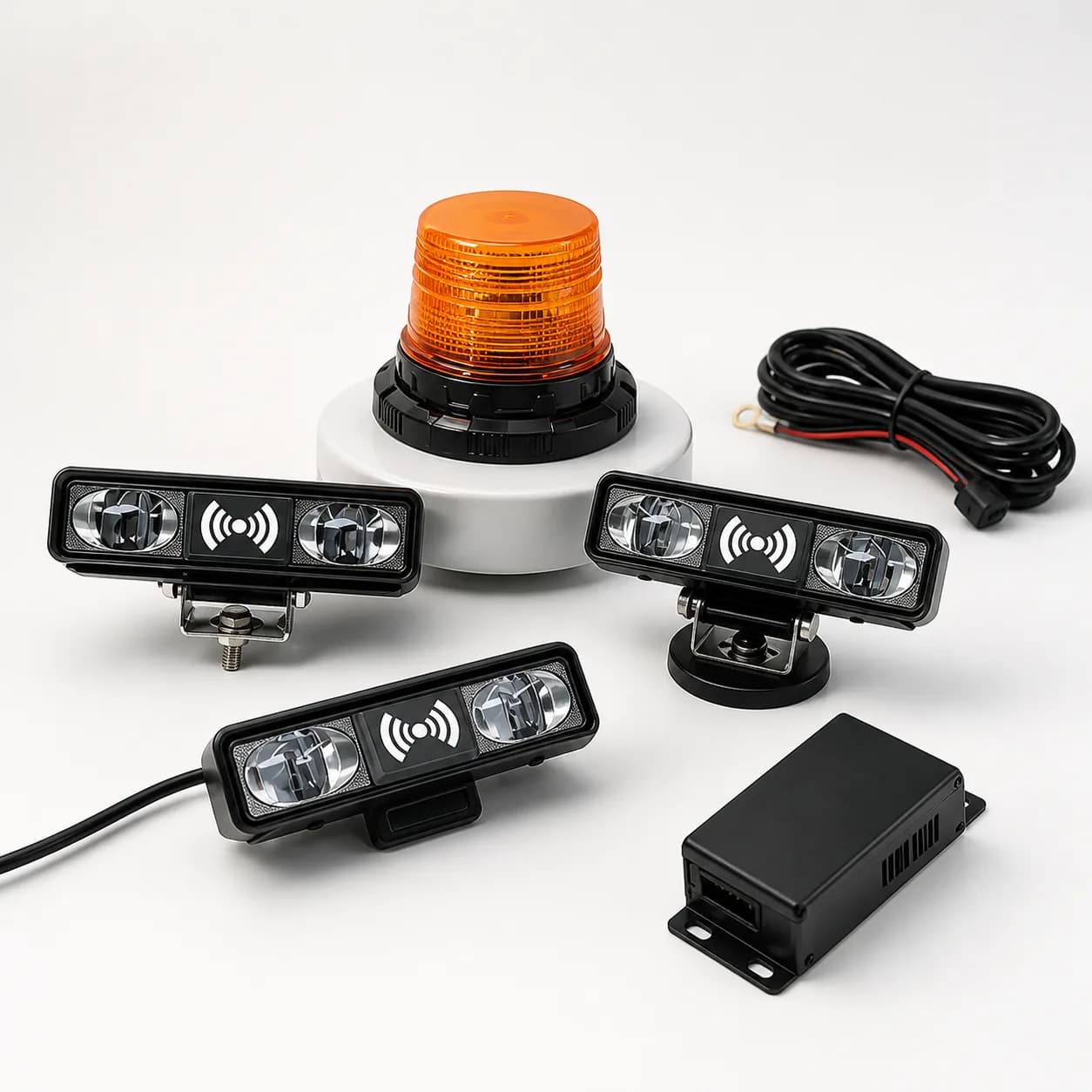

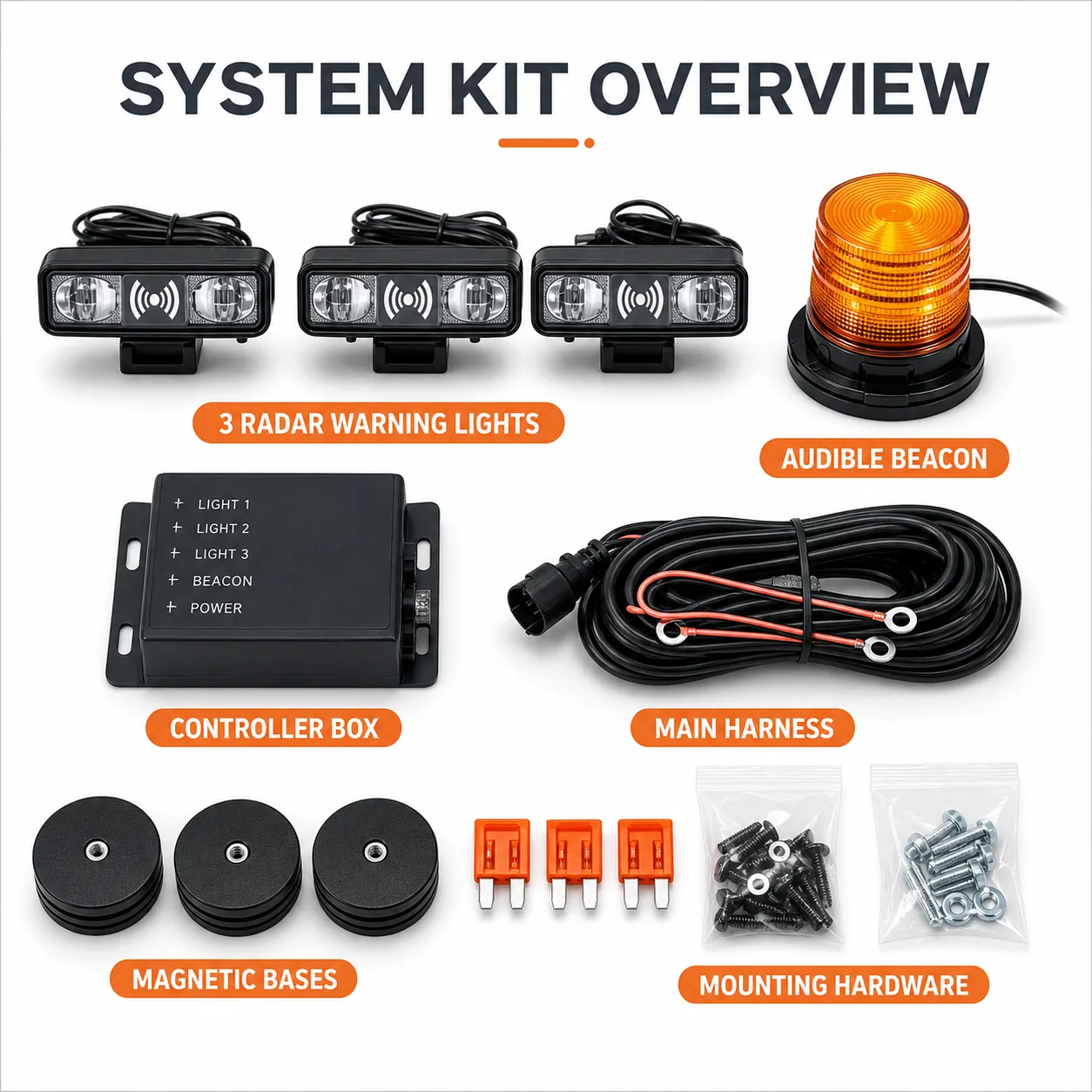

System kit
The cleaned kit board keeps the full package readable at a glance.
Instead of showing marketplace clutter, the page now surfaces the actual system composition clearly: radar lights, beacon, controller, harness, magnets, and hardware packs grouped in one commercial reference board.
Review system content
Selected parameters
Key values surfaced from the supplied source material.
Only the clearest operational and installation values are pulled forward so the product page stays commercial and easy to scan.
3 radar warning lights
Two side positions and one rear position can be coordinated from the controller box for three-side warning coverage around the forklift.
1 audible beacon
A separate amber beacon adds a high-visibility and high-attention warning layer above the forklift roofline.
DC 12-100V system fit
The reference material indicates broad DC compatibility for forklift and material-handling vehicle electrical systems.
Side range 1.5-3.6 m
Side detection distance can be adjusted to suit aisle width, blind-corner risk, and vehicle speed inside shared working zones.
Rear range 1.5-4.2 m
Rear coverage can be extended for reversing workflows where obstacle warning needs more reaction time.
Restart after setting changes
Range and sensitivity adjustments are applied after restart, keeping configuration behavior simple and predictable for on-site setup.

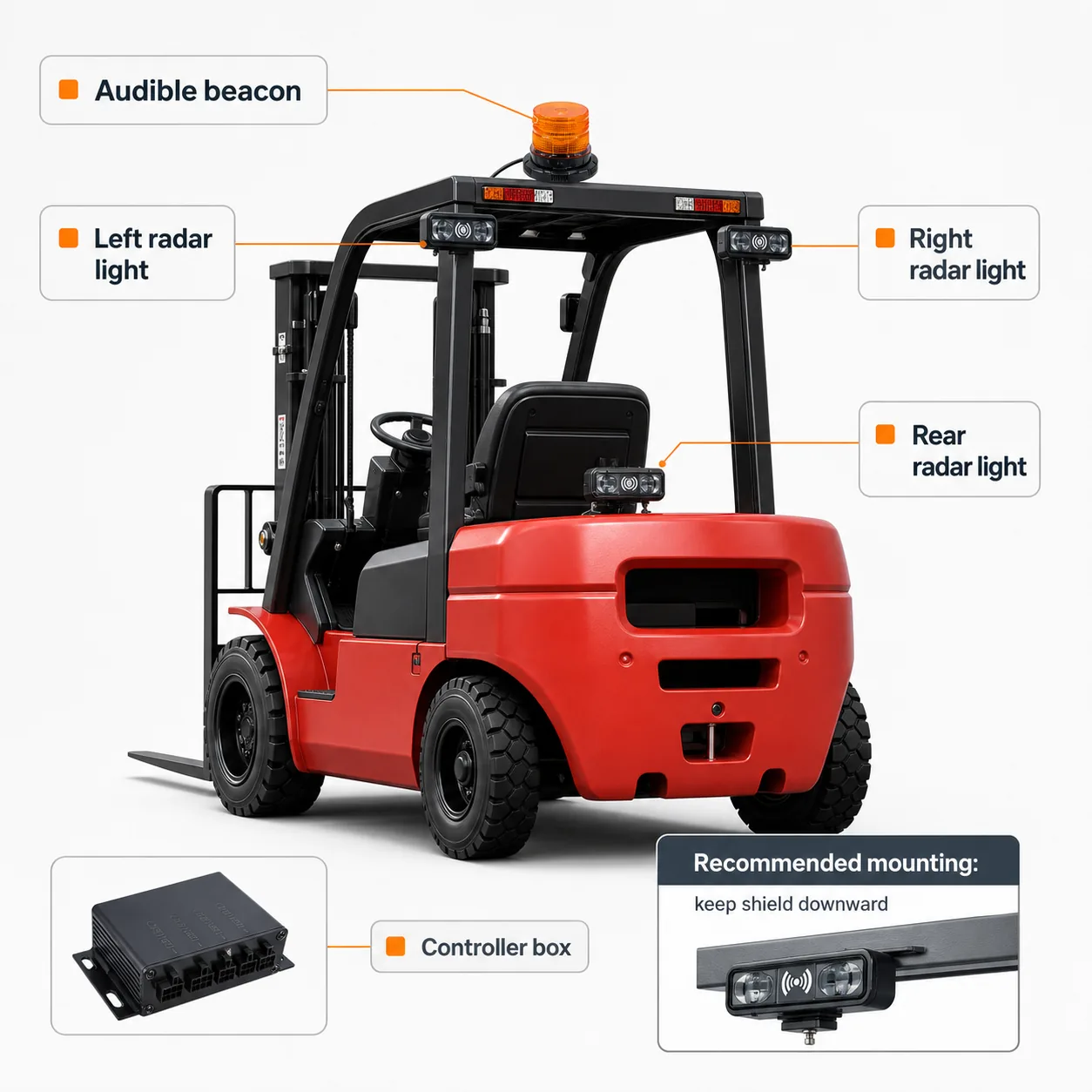

Mounting layout
A cleaner installation diagram shows how the system spreads warning coverage around the forklift.
The rebuilt layout board simplifies the original installation references into one English diagram, making it easier to understand where each radar warning light, beacon, and controller box should sit before the quote conversation moves into cable routing.
Discuss install positions

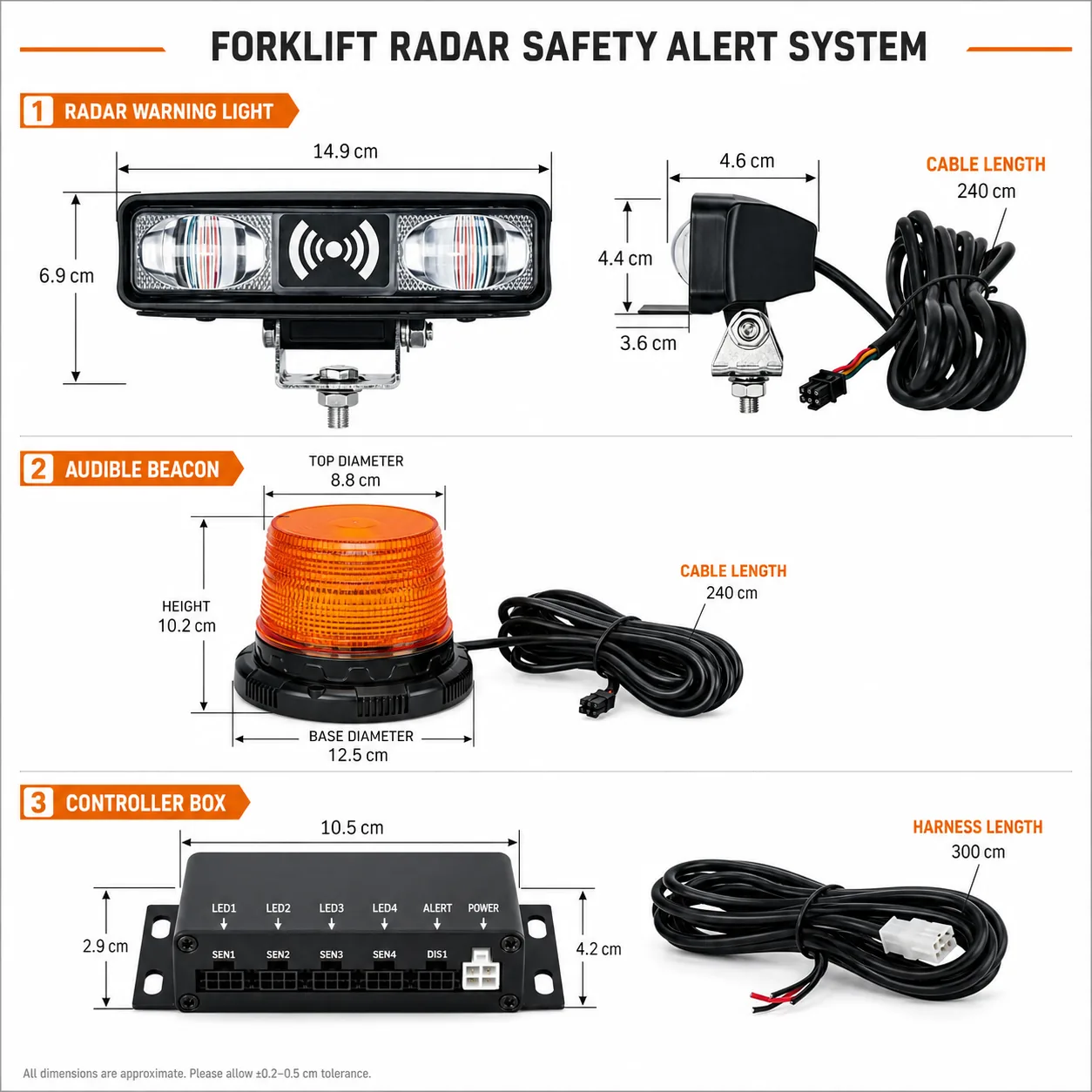

Dimensions
Radar lights, beacon, and controller dimensions stay visible for bracket planning and vehicle fit checks.
This technical board condenses the original size references into one cleaner asset so buyers can review body size, cable length, and controller footprint before finalizing hardware placement.

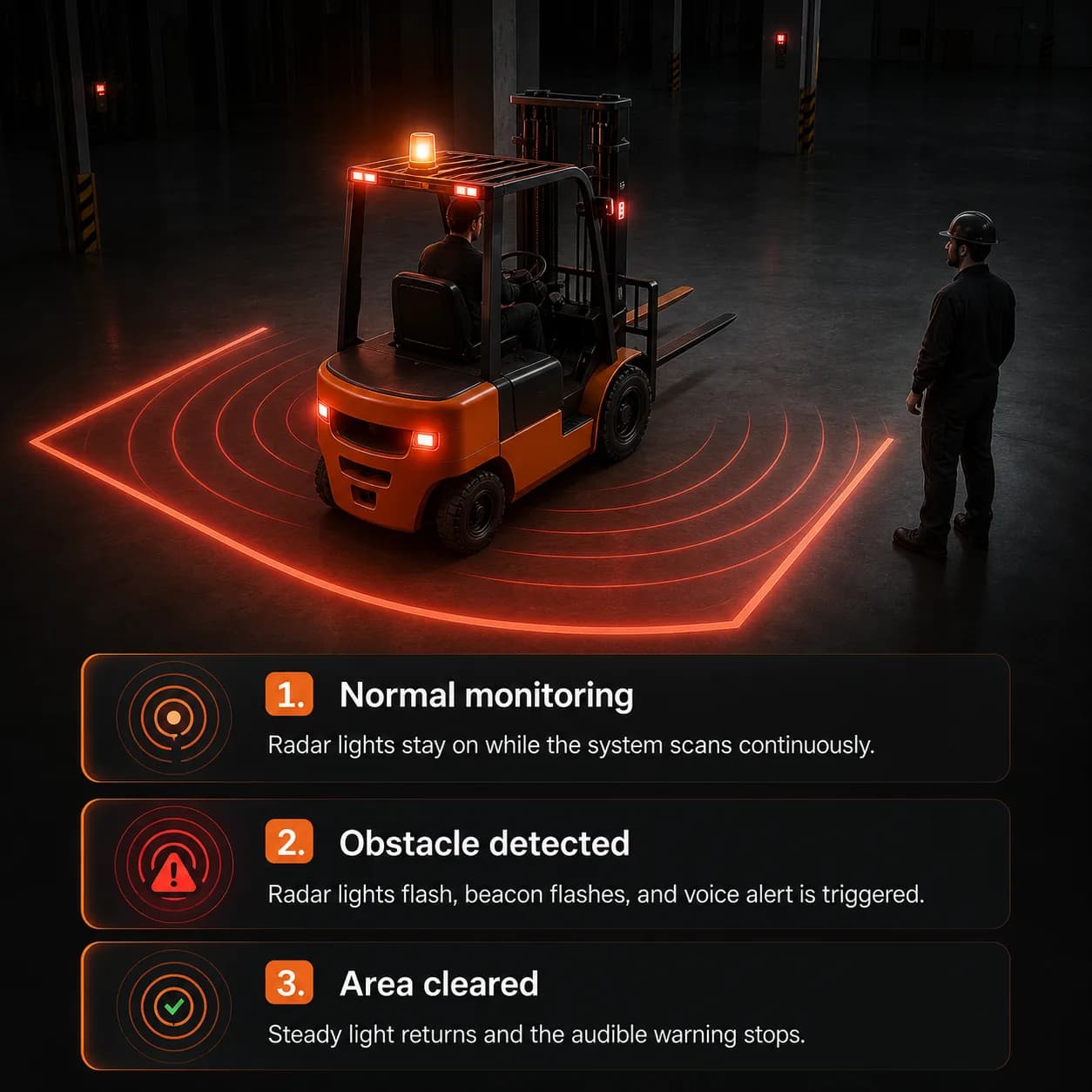

Review dimensionsAlert sequence
The application board shows the system logic in the real order operators and workers experience it.
Normal monitoring, obstacle detection, and area-cleared reset are kept in one scene so the page communicates how the system behaves in an actual warehouse workflow instead of only listing parts.
Review warning logic

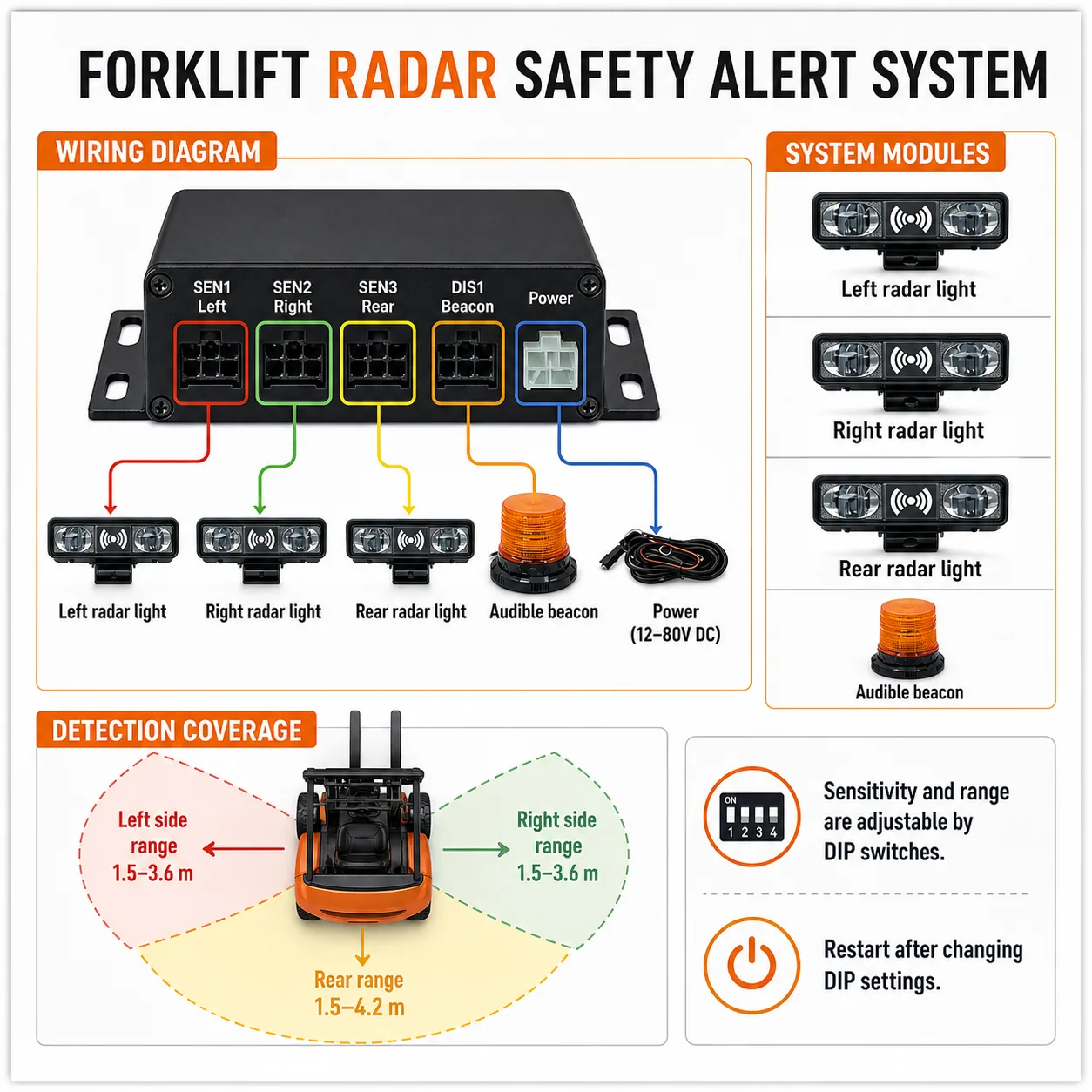

Controller setup
Port labeling and DIP-switch tuning are simplified into a cleaner setup reference.
The settings board groups wiring ports, side and rear range references, and the restart note into one technical panel so installers can understand the controller logic before site deployment.
Confirm controller setupWhere it fits
Common project scenes for this forklift safety system.
Warehouse aisles
A strong fit for busy aisles where forklifts, pedestrians, and pallet traffic overlap and visibility changes quickly.
Loading and staging zones
Useful in dock staging areas where reversing forklifts need a larger warning footprint and a clearer audible cue.
Manufacturing logistics lanes
Suitable for internal transport routes where consistent side and rear detection improves worker awareness around moving equipment.
Forklift radar safety alert system FAQs
What should we confirm before quoting?
What is included in this system?
This page covers a full forklift radar safety alert system with three radar warning lights, one audible beacon, one controller box, power harnesses, magnetic bases, and mounting hardware.
What makes this different from a single warning light?
The system coordinates multiple light positions with a separate beacon and controller, so detection logic and warning output can cover more than one side of the vehicle.
Can the detection distance be adjusted?
Yes. The supplied reference material indicates adjustable left-side, right-side, and rear coverage using DIP-switch settings on the controller box, with restart required after changes.
What should be confirmed before quoting?
Confirm forklift type, mounting positions, desired detection ranges, harness routing, controller placement, voltage input, warning-output preference, and quantity before final selection.
Ready to specify a forklift radar safety alert system?
Tell us about the forklift type, install positions, target ranges, and site workflow.
Share the forklift model, operating aisle width, desired side and rear detection ranges, controller placement, power input, warning preferences, and quantity so OULA LIGHTING can recommend a suitable system configuration.
